시계어플 오류 질문입니다. 도와주세요~~

Question

아래는 실질적인 일을하는 class(clockview) 이구요...

그아래는 main액티비티입니다.~~

오류가 걸려서 올려봅니다.

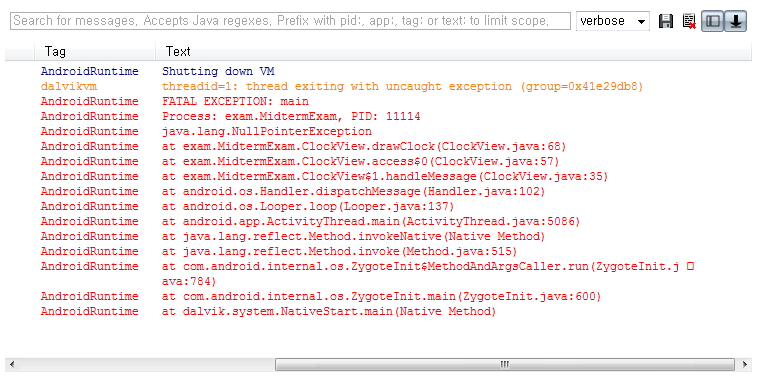

로그켓이구요 ~~ 해결 해주시면 감사하겠습니다.~~

//--------------------------------clockview class--------

package exam.MidtermExam;

import java.util.Calendar;
import java.util.GregorianCalendar;
import android.annotation.SuppressLint;
import android.content.Context;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.graphics.Canvas;
import android.os.Handler;
import android.os.Message;
import android.view.View;



@SuppressLint({ "DrawAllocation", "HandlerLeak" })
public class ClockView extends View {
  Canvas mCanvas;

  private Bitmap mClock;
  private Bitmap mCenter;
  private Bitmap mPin[] = new Bitmap[3];

  public ClockView(Context context) {
   super(context);
   // TODO Auto-generated constructor stub

   mHandler.sendEmptyMessageDelayed(0, 1000);
   }

  Handler mHandler = new Handler() {
   @Override
   public void handleMessage(Message msg) {
    // TODO Auto-generated method stub
    drawClock(mCanvas);
    invalidate();
    mHandler.sendEmptyMessageDelayed(0, 1000);
    }
   };
   @Override

   protected void onDraw(Canvas canvas) {
    // TODO Auto-generated method stub
    //super.onDraw(canvas);

    mClock = BitmapFactory.decodeResource(this.getResources(), R.drawable.dial);
    mCenter = BitmapFactory.decodeResource(this.getResources(), R.drawable.center);
    mPin[0] = BitmapFactory.decodeResource(this.getResources(), R.drawable.sec_n2);
    mPin[1] = BitmapFactory.decodeResource(this.getResources(), R.drawable.min_n2);
    mPin[2] = BitmapFactory.decodeResource(this.getResources(), R.drawable.hour_n2);

    mCanvas = canvas;
    drawClock(canvas);

    }

   private void drawClock(Canvas canvas) {
    // TODO Auto-generated method stub
    GregorianCalendar mCalendar = new GregorianCalendar();
    int hour = mCalendar.get(Calendar.HOUR);
    int min = mCalendar.get(Calendar.MINUTE);
    int sec = mCalendar.get(Calendar.SECOND);
    float rSec = sec *6 ;
    // 360도 / 60초 = 6도/초
    float rMin = min*6 + rSec/60;
    //
    float rHour = hour*30 + rMin/12 ;
    int w = mClock.getWidth()/2;
    // 반폭
    int h = mClock.getHeight()/2;
    int w1=mPin[0].getWidth()/2;
    int h1=mPin[0].getHeight()-28;
    int w2=mPin[1].getWidth()/2;
    int h2=mPin[1].getHeight()-15;
    int w3=mPin[2].getWidth()/2;
    int h3=mPin[2].getHeight()-15;
    int w4=mCenter.getWidth()/2;
    int h4=mCenter.getHeight()-40;
    int cx = getWidth()/2;
    int cy = getHeight()/2;
    canvas.drawBitmap(mClock, cx-w, cy-h, null);
    canvas.rotate(rHour,cx,cy);
    canvas.drawBitmap(mPin[2],cx-w3,cy-h3,null);
    //시침 맨아래
    canvas.rotate(rMin-rHour,cx,cy);
    canvas.drawBitmap(mPin[1],cx-w2,cy-h2,null);
    canvas.rotate(rSec-rMin,cx,cy);
    canvas.drawBitmap(mPin[0],cx-w1,cy-h1,null);
    //초침 맨위에
    canvas.rotate(-rSec,cx,cy);
    canvas.drawBitmap(mCenter, cx-w4, cy-h4, null);

   }
 }

//----------------------액티미티 매인 클래스-------------------

package exam.MidtermExam;

import android.app.Activity;
import android.os.Bundle;

public class MidtermExam extends Activity {
ClockView Clock_V;
 @Override
 protected void onCreate(Bundle savedInstanceState) {
  // TODO 자동 생성된 메소드 스텁
  super.onCreate(savedInstanceState);
  Clock_V=new ClockView(getBaseContext());
 }


}




Answer 1

package com.example.midtermexam;

import java.util.Calendar;
import java.util.GregorianCalendar;

import android.app.Activity;
import android.content.Context;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.graphics.Canvas;
import android.os.Bundle;
import android.os.Handler;
import android.os.Message;
import android.view.View;


public class MidtermExam extends Activity {
MidtermExam Clock_V;
 @Override
 protected void onCreate(Bundle savedInstanceState) {
  // TODO 자동 생성된 메소드 스텁
  super.onCreate(savedInstanceState);

  setContentView(new ClockView(this));
 }

 public class ClockView extends View {
   Canvas mCanvas;

   private Bitmap mClock;
   private Bitmap mCenter;
   private Bitmap mPin[] = new Bitmap[3];

   float rSec;
   float rMin;
     float rHour;
     int w;
     // 반폭
     int h;
     int w1;
     int h1;
     int w2;
     int h2;
     int w3;
     int h3;
     int w4;
     int h4;
     int cx;
     int cy;

   public ClockView(Context context) {
    super(context);
    // TODO Auto-generated constructor stub
    mClock = BitmapFactory.decodeResource(this.getResources(), R.drawable.ic_launcher);
     mCenter = BitmapFactory.decodeResource(this.getResources(), R.drawable.ic_launcher);
     mPin[0] = BitmapFactory.decodeResource(this.getResources(), R.drawable.ic_launcher);
     mPin[1] = BitmapFactory.decodeResource(this.getResources(), R.drawable.ic_launcher);
     mPin[2] = BitmapFactory.decodeResource(this.getResources(), R.drawable.ic_launcher);
    mHandler.sendEmptyMessageDelayed(0, 1000);
    }

   Handler mHandler = new Handler() {
    @Override
    public void handleMessage(Message msg) {
     // TODO Auto-generated method stub
     drawClock();
     invalidate();
     mHandler.sendEmptyMessageDelayed(0, 1000);
     }
    };
    @Override

    protected void onDraw(Canvas canvas) {
     canvas.drawBitmap(mClock, cx-w, cy-h, null);
      canvas.rotate(rHour,cx,cy);
      canvas.drawBitmap(mPin[2],cx-w3,cy-h3,null);
      //시침 맨아래
      canvas.rotate(rMin-rHour,cx,cy);
      canvas.drawBitmap(mPin[1],cx-w2,cy-h2,null);
      canvas.rotate(rSec-rMin,cx,cy);
      canvas.drawBitmap(mPin[0],cx-w1,cy-h1,null);
      //초침 맨위에
      canvas.rotate(-rSec,cx,cy);
      canvas.drawBitmap(mCenter, cx-w4, cy-h4, null);
     super.onDraw(canvas);
     }

    private void drawClock() {
     // TODO Auto-generated method stub
     GregorianCalendar mCalendar = new GregorianCalendar();
     int hour = mCalendar.get(Calendar.HOUR);
     int min = mCalendar.get(Calendar.MINUTE);
     int sec = mCalendar.get(Calendar.SECOND);
     rSec = sec *6 ;
     // 360도 / 60초 = 6도/초
     float rMin = min*6 + rSec/60;
     //
     float rHour = hour*30 + rMin/12 ;
     int w = mClock.getWidth()/2;
     // 반폭
     h = mClock.getHeight()/2;
    w1=mPin[0].getWidth()/2;
     h1=mPin[0].getHeight()-28;
     w2=mPin[1].getWidth()/2;
     h2=mPin[1].getHeight()-15;
     w3=mPin[2].getWidth()/2;
     h3=mPin[2].getHeight()-15;
     w4=mCenter.getWidth()/2;
     h4=mCenter.getHeight()-40;
     cx = getWidth()/2;
    cy = getHeight()/2;
    }
  }
}

살짝 손을 봤어요~ 참고하세요

이미지 아이디는 글쓴님이 가진 것에 맞게 변경해주세요

Comments

MidtermExam = 과제냄새

---

응? ㅋㅋ 생각지도 못한..!! 그런건가요 ;;
하지만 저 소스를 보면 아시겠지만 막코딩으로 실행만 되게 해놓은거라서 ㅋㅋㅋㅋㅋ
다듬으려면 약간의 공부는 하시겠죠 머

---

에러문구만 조금만 봐도 어느 부분이 오류인지 맥은 짚으실텐데..
킁킁..

---

감사합니다~ ㅠ 과제는 아니구요;;
이때까지 만들려던거 다 포기하고(너무 어려워서ㅠ)
가장 위젯이 간단하다고 하더라구요. 공부도 된다고 하고..
그래서 소스있으면 가져다가 공부할려는 목적이였습니다~
많은 고수분들께 감사합니다~
