액션바(actionbar) 공백(padding) 문제

Question

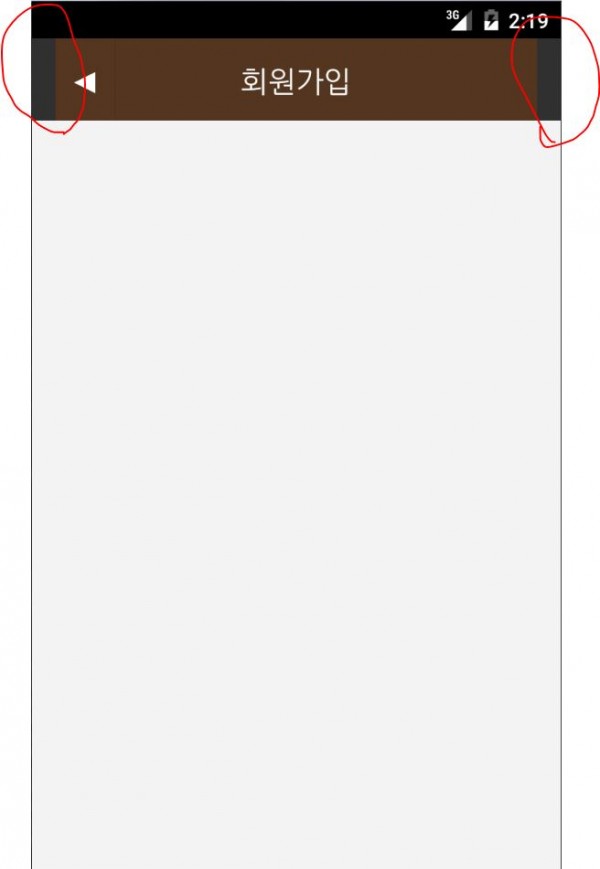

위와 같이 배경을 지정하면 공백부분이 위 색으로 채워집니다.

뭔가 액션바가 그 위에 뜨고 있는 것 같은데...

어떻게 해야 할까요?

도와주세요....

소스는 길이 제한으로 아래 댓글에 첨부합니다....

Comments

액티비티

import android.graphics.Color;
import android.graphics.drawable.ColorDrawable;
import android.os.Bundle;
import android.support.v7.app.ActionBar;
import android.support.v7.app.AppCompatActivity;
import android.view.LayoutInflater;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.TextView;
import android.widget.Toast;



public class JoinActivity extends AppCompatActivity implements OnClickListener {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_join);

        ActionBar actionBar = getSupportActionBar();
        actionBar.setDisplayShowHomeEnabled(false);
        actionBar.setDisplayShowTitleEnabled(false);
        actionBar.setDisplayUseLogoEnabled(false);
        //actionBar.setBackgroundDrawable(new ColorDrawable(0xFF54351F));
        actionBar.setBackgroundDrawable(new ColorDrawable(Color.TRANSPARENT));

        LayoutInflater inflater = LayoutInflater.from(this);
        ActionBar.LayoutParams lp = new ActionBar.LayoutParams(ActionBar.LayoutParams.MATCH_PARENT, ActionBar.LayoutParams.MATCH_PARENT);
        View customView = inflater.inflate(R.layout.custom_actionbar_01, null);

        TextView txt_top_title = (TextView)customView.findViewById(R.id.txt_custombar_01_top_title);
        txt_top_title.setText("회원가입");

        Button btn_left_nav = (Button)customView.findViewById(R.id.btn_custombar_01_left_nav);
        btn_left_nav.setOnClickListener(new OnClickListener() {
            @Override
            public void onClick(View v) {
                Toast.makeText(getApplicationContext(), "Refresh Clicked!",
                        Toast.LENGTH_LONG).show();
            }
        });

        actionBar.setCustomView(customView, lp);
        actionBar.setDisplayShowCustomEnabled(true);

    }

    /* 버튼 클릭 이벤트 */
    @Override
    public void onClick(View arg0) {

    }

}

---

커스텀액션바 xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="50dp"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:contentInsetLeft="0dp"
    android:contentInsetRight="0dp"
    android:contentInsetStart="0dp"
    android:padding="0dp"
    app:contentInsetLeft="0dp"
    app:contentInsetRight="0dp"
    app:contentInsetStart="0dp"
    android:background="#54351f">


        <!-- 회원가입부터 사용되는 커스텀 액션바 -->

        <Button
            android:id="@+id/btn_custombar_01_left_nav"
            android:layout_width="40dp"
            android:layout_height="match_parent"
            android:layout_alignParentLeft="true"
            android:layout_centerVertical="true"
            android:text="◀"
            android:textColor="#fff"
            android:textSize="24sp"
            android:background="@drawable/btn_rectangle"/>


        <TextView
            android:id="@+id/txt_custombar_01_top_title"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_centerInParent="true"
            android:textAllCaps="true"
            android:textColor="#fff"
            android:text="회원가입"
            android:textSize="20sp"
            />


</RelativeLayout>

---

style.xml


 <style name="CustomTheme" parent="Theme.AppCompat.Light">
        <item name="contentInsetStart">0dp</item>
        <item name="contentInsetEnd">0dp</item>
    </style>

    <style name="ActionBar" parent="android:Widget.ActionBar">
        <item name="android:paddingStart">0dip</item>
        <item name="android:paddingTop">0dip</item>
        <item name="android:paddingEnd">0dp</item>
        <item name="android:paddingBottom">0dp</item>
    </style>

    <style name="MyActionBar" parent="Widget.AppCompat.ActionBar">
        <item name="contentInsetStart">0dp</item>
        <item name="contentInsetEnd">0dp</item>
    </style>


    <style name="AppTheme" parent="Theme.AppCompat">
        <item name="toolbarStyle">@style/AppThemeToolbar</item>
    </style>

    <style name="AppThemeToolbar" parent="Widget.AppCompat.Toolbar" >
        <item name="contentInsetStart">0dp</item>
    </style>

---

build


apply plugin: 'com.android.application'

android {
    compileSdkVersion 23
    buildToolsVersion "23.0.2"

    defaultConfig {
        applicationId ""
        minSdkVersion 17
        targetSdkVersion 22
        versionCode 1
        versionName "1.0"
    }
    buildTypes {
        release {
            minifyEnabled false
            proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'
        }
    }
}

dependencies {
    compile fileTree(dir: 'libs', include: ['*.jar'])
    testCompile 'junit:junit:4.12'
    compile 'com.android.support:appcompat-v7:23.1.1'
    compile 'com.android.support:design:23.1.1'
    compile 'com.google.android.gms:play-services:8.4.0'
}

Answer 1

액션바가 들어간 액티비티에..



ActionBar actionBar = getSupportActionBar();
actionBar.setDisplayShowHomeEnabled(false);
actionBar.setDisplayShowCustomEnabled(true);
actionBar.setDisplayShowTitleEnabled(false);
View customView = getLayoutInflater().inflate(R.layout.main_action_bar, null);
actionBar.setCustomView(customView);
Toolbar parent =(Toolbar) customView.getParent();
parent.setContentInsetsAbsolute(0,0);



http://stackoverflow.com/questions/27354812/android-remove-left-margin-from-actionbars-custom-layout
